Sash window mechanisms

The magic of a sash window is the hidden mechanism that lets a heavy glazed panel glide up and stay put at any height. Understanding how it works makes it far easier to judge a repair quote and to know whether a sticking or dropping sash is a small fix or a bigger job. There are two main systems: the traditional cord-and-weight box and the more modern spiral balance.

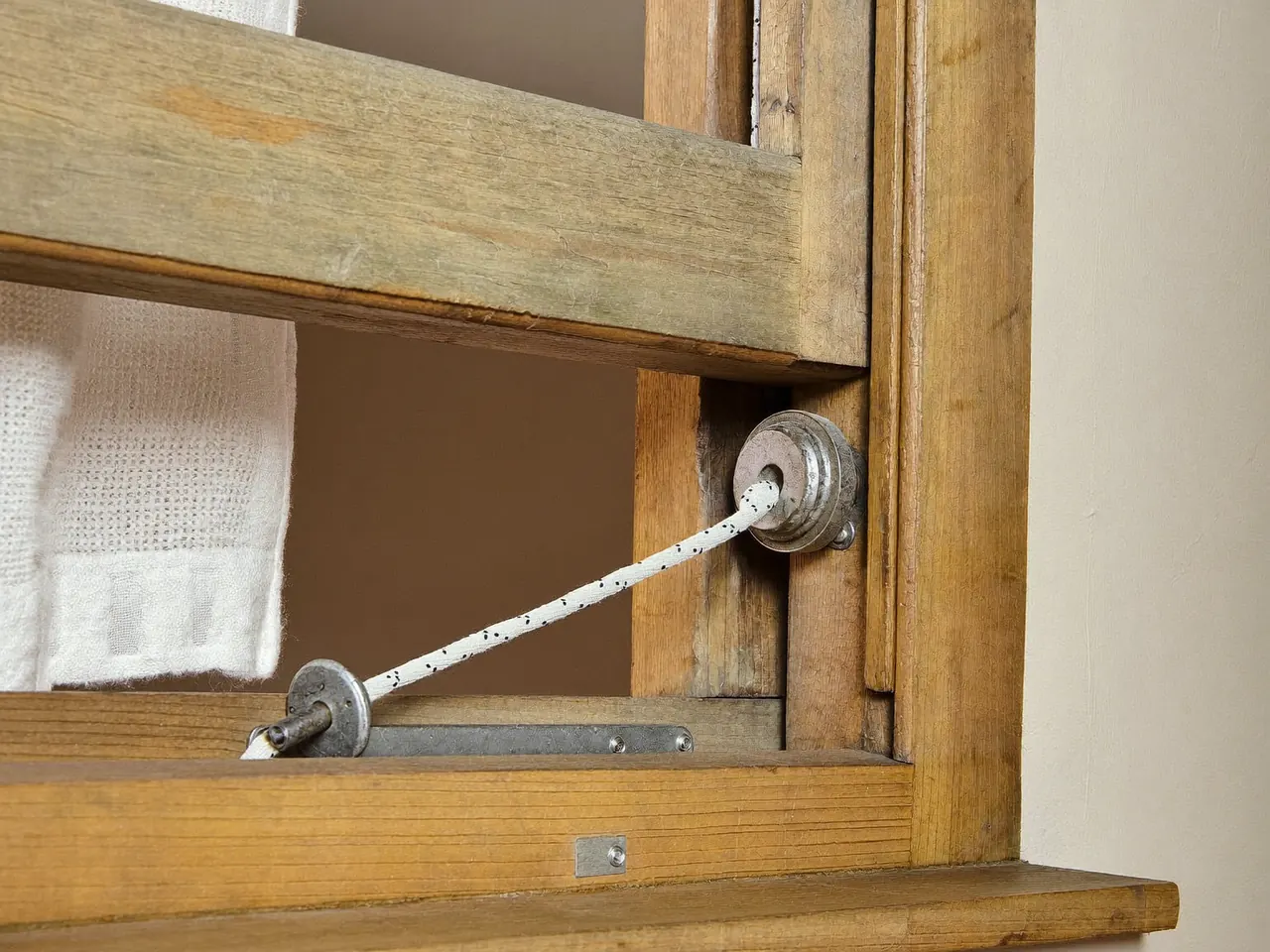

The cord-and-weight box

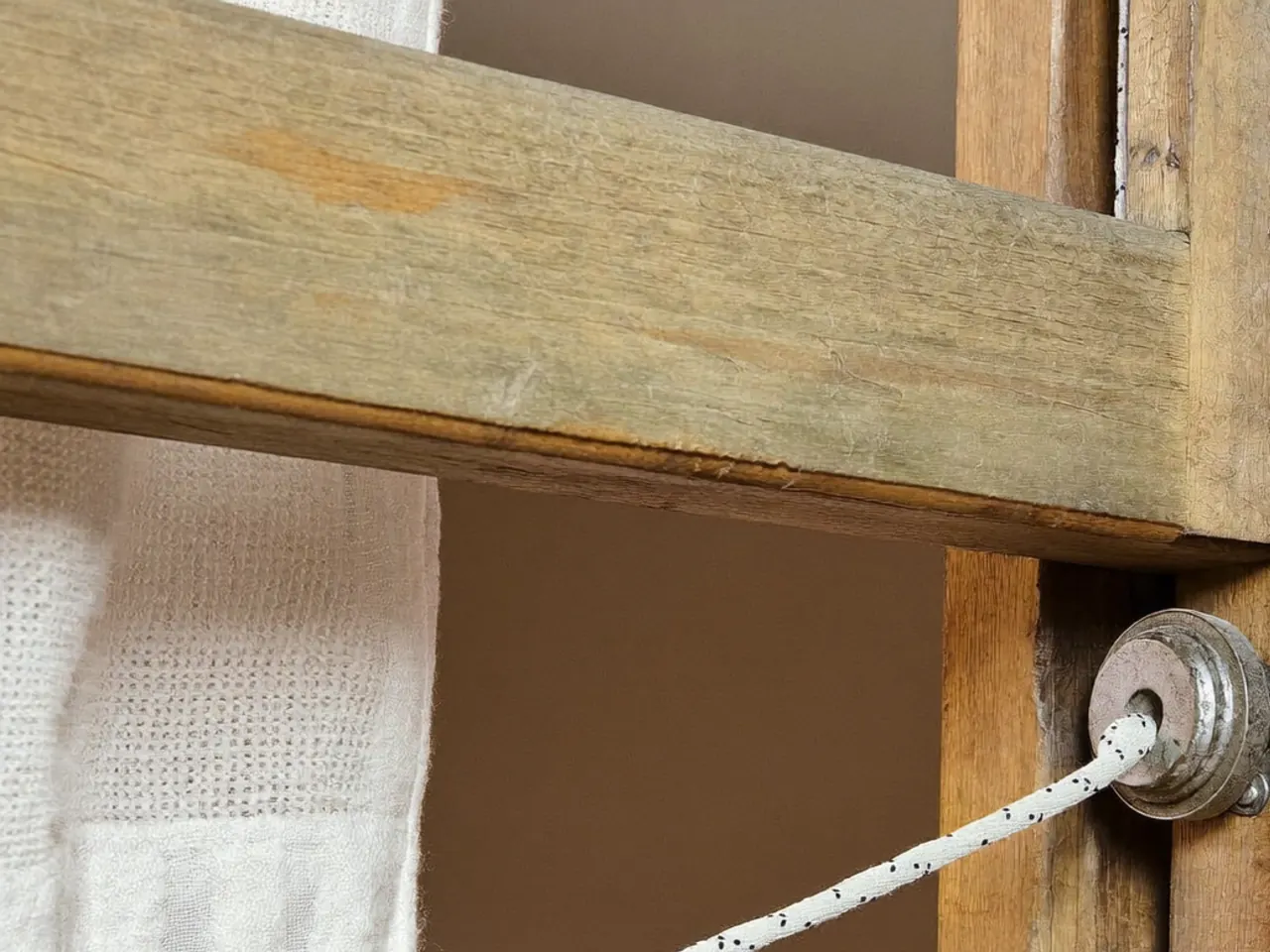

On traditional sashes, each side of the window hides a vertical cavity called the box. Inside runs a counterweight — usually cast iron or lead — connected to the sash by a cord that passes over a pulley at the top of the frame. The weight balances the sash so it rises easily and holds its position. This elegant system has kept windows working for well over a century, and because every part is replaceable it can be maintained indefinitely.

Common cord-and-weight faults

The usual failure is a broken cord: when it snaps, the sash drops shut and will not stay open. Cords can be replaced and the weights rebalanced to restore smooth operation. Other issues include seized pulleys, painted-shut sashes and worn beads that let the sash rattle. All of these are routine repairs for a sash specialist and are commonly addressed as part of a wider restoration.

Sash dropping or sticking? Compare repair quotes from sash specialists near you. Get my sash window quotes →

Spiral balances

Many newer sashes, and some replacements, use spiral balances instead of weights. A spiral balance is a spring-loaded tube fitted into the frame that holds the sash by tension rather than a counterweight. It takes up less space, which allows slimmer frames, and it is simpler to install. Over time the spring can lose tension, so the sash begins to drop; the balance can usually be re-tensioned or swapped for a new one.

Which is better?

Neither is simply better — they suit different situations. Cord-and-weight boxes are authentic, quiet and repairable forever, which is why they are valued on period and listed homes. Spiral balances are compact and cost-effective, and they enable the slim frames used in some modern heritage ranges. If you are replacing windows, the choice often follows the material and style; see our uPVC vs timber comparison.

Getting a mechanism repaired

Most mechanism faults are straightforward for an experienced installer, but diagnosis matters — a dropping sash could be a snapped cord, a tired balance or a binding bead. Ask for a clear description of the fault and the fix, and compare a couple of quotes so you understand fair value before booking the work.
